HID 3350PMSMV iCLASS SE Clamshell Smart Card, 2k – Pack of 100

Customer Reviews
Programmed with your Format, Facility Code, and Card Range

When ordering from Easy Badges, these HID 3350PMSMV iCLASS SE Clamshell smart cards will be programmed to your specifications making them compatible with your access control system. The standard and most popular HID format is the 26 bit format: H10301. Most door access control systems use this format, but not all. You will need the Format, Facility Code, and Card Range for ordering new cards. If you are unsure of your programming details, your previous orders information can be found on the HID box your cards came in.  If you don’t have the old box handy, email us for a test card so we can determine the programming needed. If you need cards that are not the popular 26 bit H10301 format, call or email us. If it is, your facility code and ID card range information can be added to the “Order Notes” on the checkout page. Make sure not to order a duplicate card range number.

Read More »

In Stock!

SKU: 3350PMSMV

Price:  $ 239.00

Quantity

Free Lifetime Phone & Email Support

Free Shipping on Orders of $35+

Price Match Guarantee

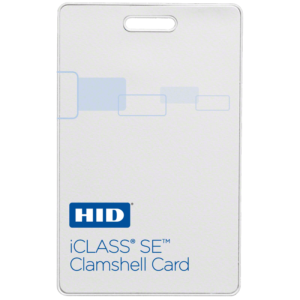

The HID 3350PMSMV iCLASS® SIO-Enabled (iCLASS SE) Clamshell Smart Cards are part of the next-generation iCLASS SE access control platform and open ecosystem based on HID’s Trusted Identity Platform (TIP) architecture for advanced applications, mobility and heightened security. iCLASS was specifically designed to make access control more powerful, more versatile,and more secure, with encryption for all radio frequency data transmission between the credential and reader using a secure algorithm. iCLASS SE extends this technology by providing additional key diversification, authentication, encryption and portability for advanced security and performance.

HID’s iCLASS SE 13.56 MHz read/write contact-less smart card technology can be used for diverse applications such as physical access control, PC logon, biometric verification, time and attendance, cashless vending, public dictates the iCLASS memory size.

The 3000 series is the most popular iCLASS SE Memory size. In this case, the last “0” indicates a 2k bits (256 Bytes) card with 2 application areas.

ƒ

Supports Secure Identity Object™ (SIO) – Multi-layered security beyond the card technology, providing added protection to identity data.
ƒ Trusted Identity Platform® (TIP™) enabled – Provides trusted identity within a secure ecosystem of interoperable products.
ƒ Supports future growth – iCLASS® 13.56 MHz read/write contactless smart card technology with multiple, securely separated files enables multiple applications for future growth.
ƒ Durable – Cost effective card package with an ABS shell construction for durability in harsh environments.

The PMSMV portion of the part number is called the configuration. Each letter gives information on how the card looks or features of the card. Here is a brief overview of what each letter means in the configuration. See the 3000 Ordering Guide PDF in the Documents and Downloads tab for the full details.

P – Programming – Programmed with Security Identity Object (SIO).
M – Card Front – Plain White Vinyl with Matte Finish.
S – Card Back – Base with Molded HID Logo.
M – Card Numbering – Sequential Matching Encoded/Engraved.
V –  Vertical Slot Punch

Specifications

Specifications

Base Part Number 3350
Configurations Available in 2k bit (256 Byte) configuration
Card Construction ABS Shell with PVC Cover Label
Dimensions 2.125" x 3.375" x 0.070" max. (5.40 x 8.57 x 0.18 cm)
Weight 0.24 oz (6.8 g)
Operating Temperature -40° to 160° F (-40° to 70° C)
Operating Humidity 5-95% non-condensing
Operating Frequency 13.56 MHz
Transaction Time <100 ms typical
Baud Rate 26 kbps
Memory Type EEPROM, read/write
Multi-application Memory 2k bit (256 Bytes) card – 1 application area 16k bit (2k Bytes) card – 2 or 16 application areas 32k bit (4k Bytes) card – 16k bits in 2 or 16 application areas plus 16k bits user configurable
Write Endurance Min. 100,000 cycles
Data Retention 10 years
Typical Maximum Read Range R10: 1.5-2.5" (3.8-6.3 cm); R30/RW300: 1.5-3.0" (3.8-7.6 cm); R40/RW400: 2.5-4.5" (5.1-10.2 cm); RK40/RWK400: 3.0-4.0" (6.3-8.9 cm). *Dependent upon installation conditions.
Operates With Any reader that can read iCLASS® SE™ technology
Warranty Lifetime warranty. See complete warranty policy for details
